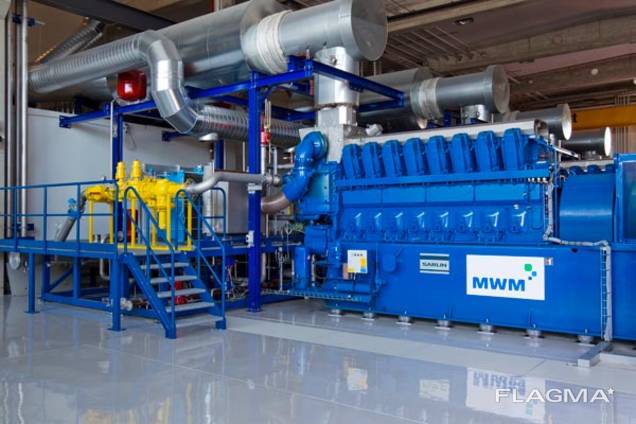

Used gas engine MWM TCG 2020 V20, 2000 kW, 2018

Technical specifications of a used MWM TCG 2020 V20 gas piston generator, 2,000 kW, manufactured in 2018, with 0 operating hours.

Engine Manufacturer: MWM

Engine Type: TCG 2020 V20

Power: 2,000 kW

RPM: 1500

Fuel: Natural Gas

Generator Model: Marelli MJH 630 LA4

Hz: 50

Year of Manufacture: 2018

Operating Hours: 0 (zero)

Included:

Engine
Generator
Gas Line
Control Panel

MWM TCG 2020 V20, 2 MW

Technical Data, Fuel: Natural Gas

No. <500.0 mg/Nm³ *

Minimum Methane Number: MN 8012! Dry Exhaust Line

Engine Type: TCG 2020 V20

Power: 2,056 kW

Rotation Speed: RPM 1500

Mean effective pressure bar 18.6

Exhaust gas temperature approx. °C 424

Wet exhaust gas mass approx. kg 10741

Combustion air flow approx. kg/h 10402

Supply air temperature, min./opt. °C 20/25

Supply air flow approx. kg/h 49,028

Engine Parameters

Cylinder Bore/Piston Stroke mm 170/195

Displacement 8 cu in dm3 88.5

Compression Ratio 13.5:1

Average Piston Speed ​​m/s 9.8

Lubricating Oil Capacity 300 cu in dm3

Average Oil Consumption at Full Load ° g/kWh 0.20

Generator

Generator Efficiency * % 97.3

Energy Balance

Generator Terminal Power * kW 2,000

Cooling Jacket Heat Dissipation Capacity +8% kW 978

Second-Stage Intercooler Heat Dissipation Capacity +8% kW 172

Engine Radiation Heat kW 70

Generator Radiation Heat kW 55

Power Fuel consumption +5% kW 4581

Electrical efficiency 43.7%

Thermal efficiency 43.3%

Overall efficiency 87.0%
