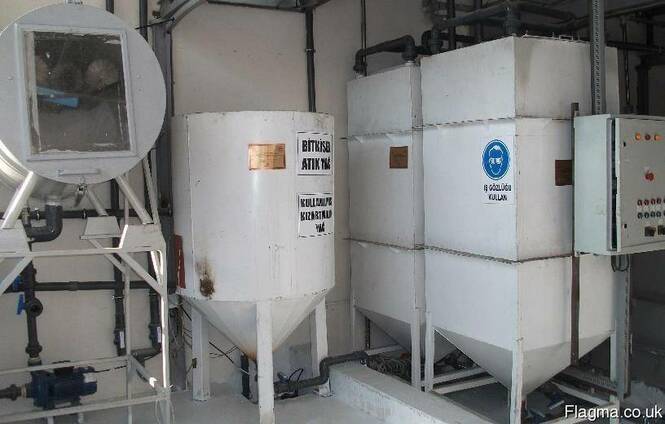

Used Biodiesel Plant 100 Tons/Month

The purpose of this presentation is to inform potential investors about a biodiesel production plant with a capacity of 100 tons per month.

This plant includes one oil pretreatment system, one reaction system, one biodiesel washing unit, one biodiesel drying unit, one chemical and biological treatment system, one air deodorization system, and one 30-ton plastic can washing unit (3x10-ton containers).

Biodiesel plant, 100 tons/month
Technical Specifications:
Installed capacity: 100 tons/month
Commissioning date: August 2013
Annual production: over 1,000 tons

Biosynthesis unit:
Oil press: 300 kg/hour
Plastic can washing unit: 20 cans/hour
Waste vegetable oil filtration unit: Filter press (30x30, 15 plates) 500 l/hour
Waste vegetable oil dehydration unit: 1 m³ (4 m³/day)
Dehydrated vegetable oil tank: 2 x 5 m³
Biodiesel reactor: 400 l + 1,000 l (10 processes/day = 14,000 l/day) (AISI316)
Methoxide reactor: 500 l (10 processes/day = 5000 l/day) (AISI316)
Alcohol recovery unit: 1 m³ (6 processes/day = 6 m³/day).
Biodiesel washing unit (wet washing): 3x5 m³ (10 m³/day). Biodiesel dewatering unit: 1 m³ (4 m³/day). Waste Vegetable Oil Tank (with heater): 10 m³
Methanol Tank: 10 m³
Biodiesel Tank: 10 m³
Chemical Water Treatment: 200 l/h
Biological Water Treatment: 200 l/h
Air Deodorization System: 1000 m³/h

Waste Vegetable Oil Preparation Unit
Technical Specifications:
Waste Vegetable Oil Feed Drum (with heater): 500 l
Waste Vegetable Oil Transfer Pump
(Eccentric Screw): 1.5 kW
Filter Press Pump (Gear Type): 1.5 kW
Filter Press: 30x30x15 Plates
Waste Vegetable Oil
Sedimentation Tank: 2x1 m³
Sedimentation Tank Oil dehydration (heated, mixed, and vacuum): 1000 L

Dehydrated vegetable oil (process oil) tank: 2 x 5 m3
Dehydrated vegetable oil (process oil)
Transfer pump (gear type): 1.5 kW

Biodiesel reactor and washing unit
Technical Specifications:
Dehydrated vegetable oil (process oil) tank: 2 x 5 m3
Dehydrated vegetable oil (process oil)
Transfer pump (gear type): 1.5 kW

Biodiesel dehydration unit and biodiesel tank
Technical Specifications:
Biodiesel dehydration system. Heated, mixed, and vacuum): 1,000 L
Biodiesel tank: 10,000 L
Air deodorization system (wet scrubber): 700 L of media.
Chemical water treatment: 200 L/h.

The equipment is in excellent working order.
