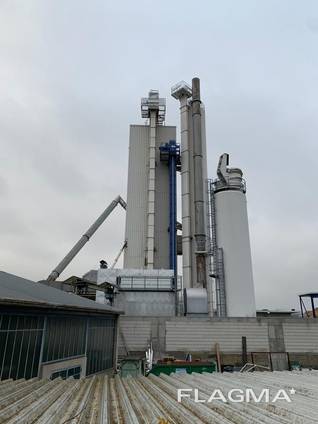

Used asphalt plant Benninghoven TBA-160-U 200-250 t/hour

Used stationary (quickly assembled) Benninghoven TBA-160-U asphalt mixing plant, 200-250 t/h (manufactured in 2003), Germany

The plant is currently fully operational.

Standard operating conditions:

The plant is designed to produce 200-250 t/h of road mix with a finished product initial moisture content of 4% under the following standard conditions:

Aggregate inlet temperature to dryer greater than 10ºC
• Altitude above sea level
• Average feed aggregate density 1,650 kg/m3
• Liquid fuel No. 6 calorific value ≥ 9,200 kCal/kg
• Liquid fuel No. 4 calorific value ≥ 9,700 kCal/kg
• Diesel fuel calorific value ≥ 10,200 kcal/kg
• Natural gas calorific value ≥ 7,600 kcal/kg
• Hot aggregate temperature rise 160 K
• Residual moisture content in the mix 0.3%
• Max. Unit size: 40 mm
• 3 mm material flow screen: 35%
• 80 m material flow screen: 8%
• Total specific heat capacity: 0.21 kcal/kgºC

Plant parameters:
Manufactured in 2002 and first launched in 2003
very few operating hours
In excellent technical condition.

Included:
5 bins
2 recycling bins
Benninghoven drying drum with thermal insulation
Drive rings show no wear
Benninghoven burner for diesel or coal dust (liquid fuel version also available)

Filter – Benninghoven Bag Filter, Hot-dip galvanized sheet steel body with epoxy coating.

Benninghoven 3-ton mixer, overhauled in 2019

6-level screening screen + oversized load
Hot elevator - buckets and elevator chain in perfect technical condition

Elevator filler - buckets and elevator chain in perfect technical condition
Elevator recycling - buckets and elevator chain in perfect technical condition

3 x 80 m³ bitumen tanks with vertical electric heating
Insulated and electrically heated bitumen pipe

1 x 60 m³ diesel tank
1 x 100 m³ coal dust tank

Control room with computer
Container workshop with spare parts
