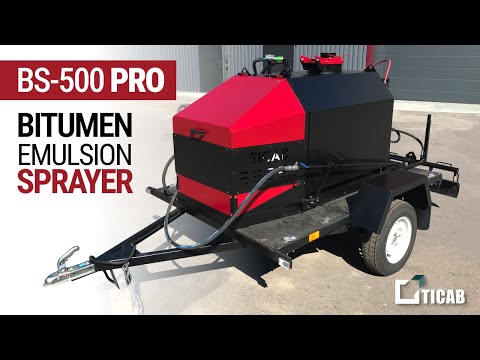

Bitumen emulsion sprayer/Asphalt distributor BS-500 MODERN

Sprayer for bitumen asphalt emulsion is intended for a primer before the laying of asphalt, road repair, asphalt adjacent territory and also for filling joints and cracks. Intake of bitumen emulsion is carried out with a tank volume 500 l., which installed directly to the device. The heating system allows to use bitumen emulsion in the cold weather. Type of gasoline engine is 4 stroke air-cooled. Equipped with flushing system - pump washing systems, hoses, bypass. You can connect a compressor to blow the system. Fitted purge system for quick purification for the whole system. There are hand-spray system and rear tire spray. Equipped with a temperature sensor.
Model BS-500 Premium characteristics:
 Engine - HONDA GX160 with electric starter
 Engine power – 3.6 kw (4.8 hp.)
 Fuel gasoline – A92 and above.
 Fuel consumption – 1.4 liters\hours.
 Gear pump.
 Torch power – 75 kw.
 The operating pressure of the burner gas is – 1.
 Recommended of the capacity – 27 liters gas cylinder.
 The length of the hand sprayer rod – 4 m.
 Spray bar length – 2.0 m.
 The width of spraying by spray bar – 2.2 m. (7 nozzles of Italian origin).
 The spraying rate of bitumen emulsion through hand sprayer – 4 l/m.
 The spraying rate of bitumen emulsion through spray bar – 36 l/m.
 Consumption of bitumen emulsion – 0.8 l/sq. m.
 The amount of bitumen emulsion tank – 500 l.
 Weight (without emulsion) – 450 kg.
 Deadline – 14 days.
 Warranty – 1 year.

Advantages:
 4-stage cleaning system system.
 The power block can be detached from the frame and installed on a different transport platform.
 Universal assembly system.
 Pump system with the built-in filter for filling in/out the tank with bitumen emulsion .
 Built-in heating system (gas propane burner).
 Warranty 1 year.
